#KVT517A-8UV
ServView KVM LCD Console Tray and Switch - 17-in., 8-Port, Dual-Rail, VGA, PS/2, USB
Use this rackmountable 17", dual-rail, 1U console drawer for when space is at a premium.
Click here to visit our LCD Tray Selector
Product Features
- KVM switch function module connects to VGA, and either PS/2 or USB servers

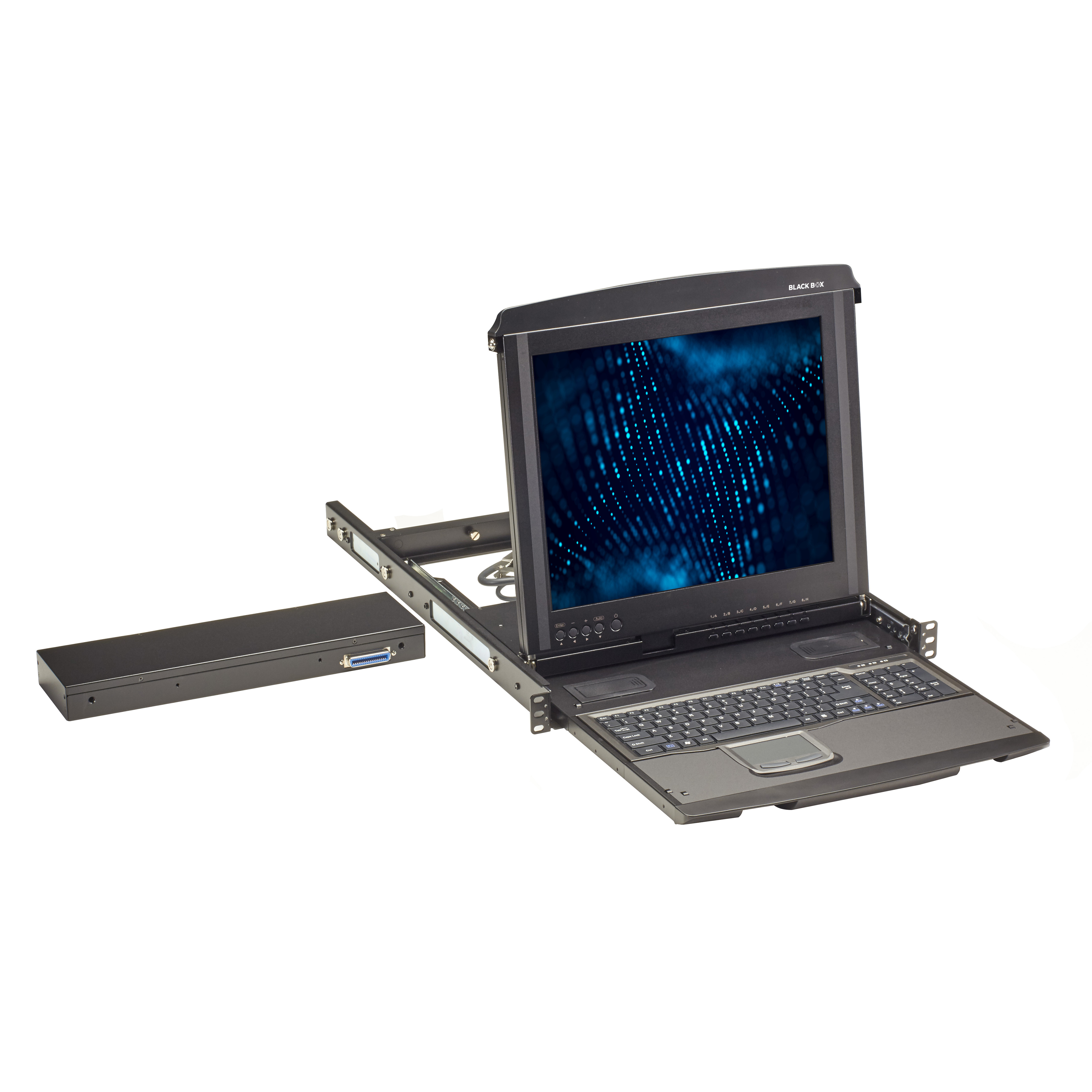

- Dual-rail console drawer features keyboard, touch pad, and LCD monitor in 1U of space

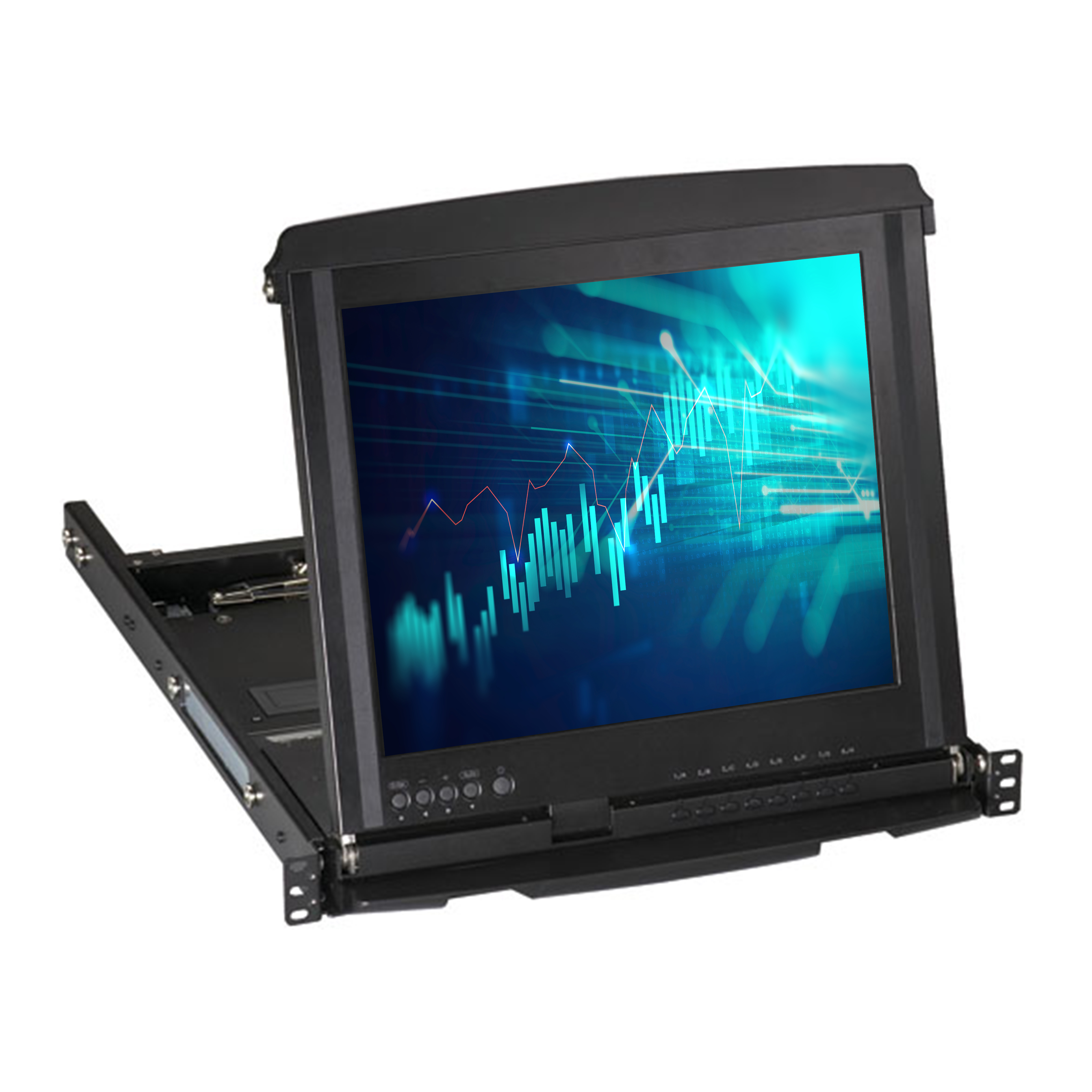

- Flip-open 17" TFT LCD panel supports resolutions up to 1280x1024
- Front-panel USB 2.0 port remains accessible to peripherals even with tray closed
- Hideaway USB port for USB HID-supported wireless keyboards and mice
- Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image
The ServView V with 8-Port, VGA, USB, PS/2 offers server management in a space-saving, streamlined package. The tray includes a keyboard touchpad, a 17" TFT LCD panel, and an 8-port KVM switching module housed in an industry-standard 19" 1U rack drawer, saving you valuable cabinet space.
The dual-rail design enables the keyboard and LCD display to slide in and out of the rack independently of each other. Store the keyboard out of the way while keeping the display open so you can easily monitor your servers. Check system status even with the cabinet door closed.
Control made easy
Save space by using the switching controls on the monitor bezel to control the switching module without pulling open the keyboard drawer. The top of the drawer has an LED lighting bar to make the closed drawer easy to find in a dark rack.
You can install a USB RF or Bluetooth® adapter in the hideaway at the top of the keyboard/mouse tray to access the ServView V and servers with your own wireless keyboard.
Easy in-and-out
The sturdy, slim drawer helps reduce server room clutter. Pull it out and latch it securely in place to use. Or fold your display into the drawer, slide it into the rack, and lock it in place. The ServView V also includes a scratch-resistant surface and a slip-free handle. Installation is easy, too.
Easy to see
The standard ServView V features a sharp LCD screen with up to 1280 x 1024 resolution. On-screen menus provide quick access to adjust brightness, contrast, screen resolution and refresh rates. At a 45-degree angle, the LCD monitor automatically shuts down, so you don't have to worry about leaving it on when you put it away.
Additionally, Sun® native resolutions are supported for multi-platform functionality. Support for VESA DDC 1/2B enables the monitor to automatically adjust to its optimum performance when connected to a server that supports DDC.
Easy to use
The drawer console features a full 105-key, low-profile keyboard. It also supports Sun and Mac® keyboard mapping. The touchpad has simulated wheel control and is dust- and waterproof. Both the keyboard and the touchpad are replaceable.
- ServView V KVM Tray
- KVM Switch Module
- Power Supply
- Power Cord
- Universal Rear Rail Kit: (2) Brackets, (2) Extenders, (8) Screws
- User Manual
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
1 Year Double Diamond™ Warranty (Standard)
Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box.
Our Double Diamond Warranty* protects your Black Box® brand products from manufacturing and/or material defects.
The KVT517A-8UV comes with a 1 Year Double Diamond™ Warranty (Standard) . During the warranty period, Black Box will repair or replace your damaged equipment at NO CHARGE!*
What’s more, we also have a 30-day return policy on most products. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package to receive a full refund.** Click here to find your local sales office to obtain a Return Authorization.
Extended Double Diamond Warranty.
Extend the warranty on select products or protect eligible previously purchased Black Box® brand items for an additional year - at just 10% of the original purchase price or for three years for only 20% of the purchase price.
