#LGB5028-R3

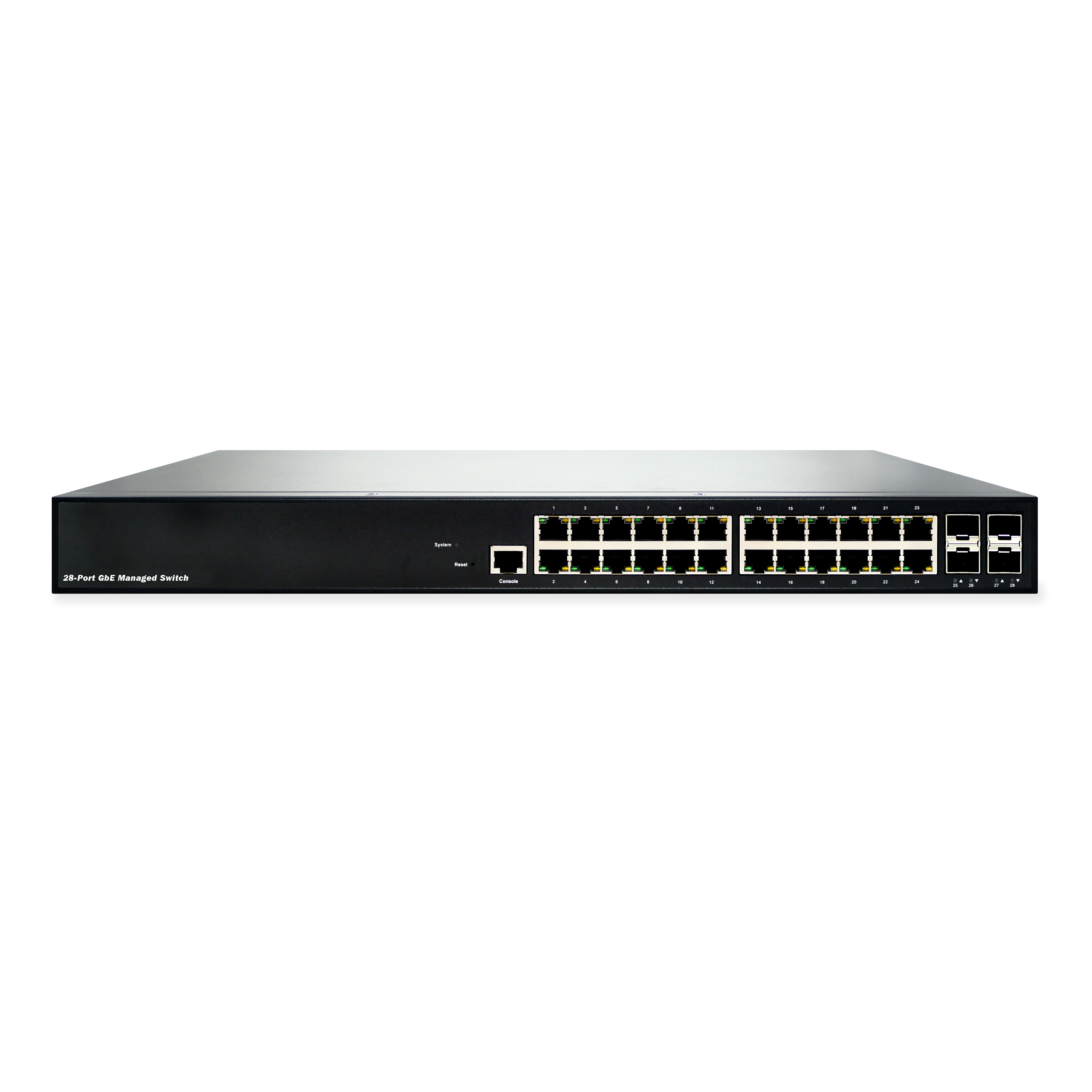

LGB5000 Series Gigabit Ethernet (1000-Mbps) Managed Switch - (24) 10/100/1000-Mbps Copper RJ45, (4) 100/1000-Mbps SFP+, (1) DB9 Console
This layer 2 switch delivers high performance, scalability, and availability for your LAN access network.
Product Features
- Full SNMP management plus Web-based management and console port
- Support for VLAN and QoS
- Supports IEEE 802.1x port-based network access control
- 802.3az Energy-Efficient Ethernet saves on power costs
This high-performance switch uses LACP and IEEE 1588v2 to optimize network operations.
LACP is used in high-availability and performance environments, such as data centers or enterprise networks, to aggregate links between switches, servers, or routers. It simplifies management by treating multiple links as one, and improves resilience by avoiding single points of failure. LACP scales network capacity without upgrading individual links.
IEEE 1588v2, also known as Precision Time Protocol (PTP), is a standard protocol used to precisely synchronize clocks across a network. This is important in applications that require highly accurate timing, such as telecommunications, industrial automation, power systems, and financial services.
Fully manageable
The switch is fully managed, supporting SNMP version 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events). The integral Web server enables Web-based management via a Web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring, and includes a wide range of management and support features.
Support for VLAN and QoS
Support for up to four simultaneous VLANs segments traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. 802.1p Layer 2 quality of service (QoS) prioritizes time-sensitive applications such as VoIP and video.
Secure
Enterprise-class security features include 802.1X port-based network access control to authenticate devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.
Green
IEEE 802.3az energy-efficient Ethernet scales down power consumption during periods of low data activity, saving 50% energy. Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.
- Managed 10Gigabit Switch
- (4) Adhesive Rubber Feet
- Mounting Accessory (for 19" Rack Shelf, optional)
- (1) RS-232 to RJ-45 Console Cable
- (1) AC Power Cord
- (1) Installation Guide
- User Manual in PDF format on CD-ROM
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
